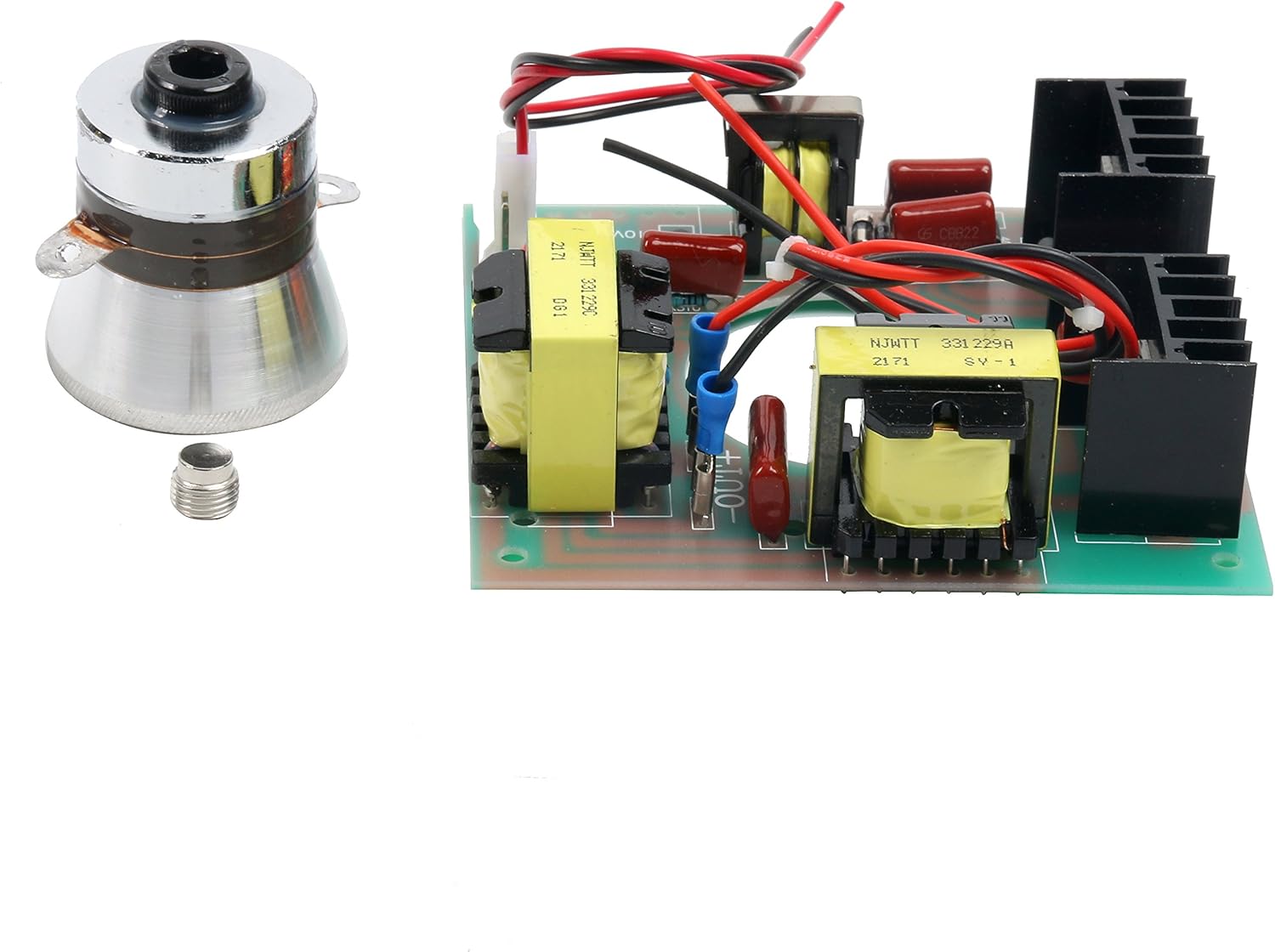

YaeCCC 60W 40KHz Ultrasonic Cleaning Transducer Cleaner + Power Driver Board 110V AC

Specifications: Frequency: 40±1 KHz Radiating surface: 45 mm Power: 60 W Dimensions: Dia 45mm x H 50mm Power Driver Board: 110VAC Instructions for the use of circuit board and shock head connection: 1. in principle, the circuit board can not be no-load in the case of electricity. 2. when the installation completed,in the case of cleaning without any cleaning liquid, the best time to pass the electricity is not more than 1 minute. 3.1 shock head is connected in parallel to the wiring board of the circuit board, and a circuit board and a shock head are used together. 4.OUT+ transducer (oscillator) positive pole, OUT- transducer (oscillator) negative pole, OUT positive and negative pole are connected with the positive and negative poles of transducer separately.(Note: the voltage of the output terminal on the circuit board is about 400V. Pay attention to safety. The leakage protection switch on the input power supply to ensure safety.) Note: It does not come with drawings and wiring diagrams,any questions,pls feel free to e-mail us,thank you. Package include: 1 x 60W 40KHz Ultrasonic Cleaning Transducer Cleaner 1 x Power Driver Board 110VAC

• Ultrasonic cleaning transducer Cleaner.
• Board radiating surface.
• homogeneous sounding board.
• Ultrasonic transducer are used for ultrasonic cleaning ,medical ,beauty and so on ,also supply ultrasonic power supply ,with sweeping ,adjsutable power, automotive and aerospace industry,mechanical industry,plating industry etc.
